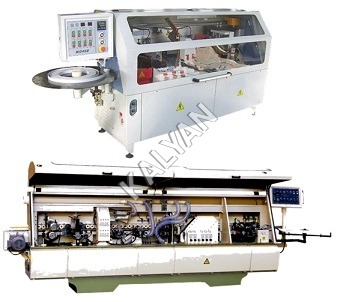

      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE

      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE
      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE
      Send Inquiry
      Product Code : EDGE BANDING
      Price And Quantity
      • Minimum Order Quantity
      • 1 Unit
      • Price Or Price Range
      • INR/Unit
      Product Description

      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE /EDGE BANDER / EDGE BANDING MACHINE

      Our team of efficient professionals enable us in offering the best range of Automatic through feed Edge Banding machines. These are precision designed and are stringently checked by our team of quality controllers. In our endeavor to attain maximum client satisfaction, we provide our gamut in customized specifications by adhering to the designs and work process needs of our clients. Our automatic through feed edge banding models includes BC5, BC6, BC7, KI-TF505, KI-TF-508C, KI-TF508CM, KI-TF-509, KI-TF-509R, KI-TF-509M AND KI-TF-509RM etc.

      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE MODEL CH-5

      Specifications:

      Model

      CH-5

      Max panel thickness

      45mm

      Thickness

       of belt

      PVC Belt

      0.4-3mm

      Max. thickness of timber

      4mm

      Gluing motor power

      0.75KW

      End trimming motor power

      0.35KWx2

      Fine trimming motor power

      0.5KWx2

      Buffing motor power

      0.18KWx2

      Feeding belt motor power

      0.76KW

      Feeding speed

      <=13m/min (stepless)

      Machine packed size

      2200X800X1150mm

      Total power

      7.36KW

      Weight

      1000kg

      All specifications, dimensions & design characteristic are subject to change without prior notice.

      AUTOMATIC THROUGH FEED EDGE BANDING MACHINE MODEL BC6

      Specifications

      Model

      BC6

      Panel thickness

      NO round trimming

      10-60mm

      NO pre-milling

      Round trimming

      10-45mm

      Pre-milling

      Panel width

      NO round trimming

      Min. 60mm

      Round trimming

      Min. 130mm

      Panel length

      NO round trimming

      Min. 120(pvc)mm

      Round trimming

      Min. 140mm

      Pre-milling

      Min. 320mm

      Edge thickness

      NO round trimming

      0.4-15mm

      Round trimming

      0.4-3mm(Optimum 1.2-3mm)

      Edge width

      NO round trimming or no Pre-milling

      15-65mm

      Round trimming or no Pre-milling

      15-50mm

      Feeding speed

      NO round trimming

      13/18m/min

      Round trimming

      13m/min

      Frequency converter

      200Hz

      Total power consumption

      12.36kw(2 sets of copying motors, whose power is 2-0.5kw)

      Required air pressure

      0.7Mpa

      Net weight

      2250kg

      Overall dimensions(LxWxH)

      5600x850x1650mm

      All specifications, dimensions & design characteristic are subject to change without prior notice.

      Model Available

      • Automatic through feed Edge Banding Machine Model BC7, KI-TF508C, KI-TF508CM, KI-TF509, KI-TF509R, KI-TF 509M, KI-TF509RM, KI-TF505

      Trade Information
      • Supply Ability
      • 100 Unit Per Month
      • Delivery Time
      • 1 Months
