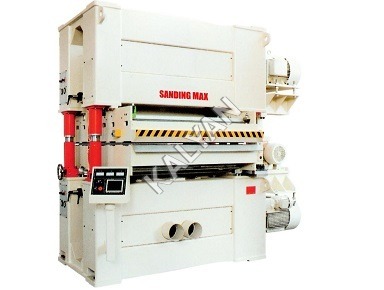

        TWO HEAD WIDE BELT SANDING MACHINE FOR PARTICAL BOARD

        TWO HEAD WIDE BELT SANDING MACHINE FOR PARTICAL BOARD

        Product Details:

        • Product Type WIDE BELT SANDING MACHINE
        • Power Source Electricity
        • Operating Type Automatic
        • Surface Treatment Painted
        • Dimension(L*W*H) 2350x2570x2200mm Millimeter (mm)
        • Color White
        • Usage/Applications Industrial
        • Click to View more
        X

        Price And Quantity

        • 1 Inch
        • INR/Unit

        Product Specifications

        • White
        • Automatic
        • Electricity
        • Painted
        • Industrial
        • WIDE BELT SANDING MACHINE
        • 2350x2570x2200mm Millimeter (mm)

        Trade Information

        • 100 Inch Per Month
        • 1 Months

        Product Description

        Specifications:

        Model

        KI-PB-1300-R-RP

        Width of Panel

        40-1300mm

        Thickness of Sanded Panel

        3-160mm

        Speed of Abrasive Belt on 1st Unit

        18 m/s

        Speed of Abrasive Belt on 2nd Unit

        12 m/s

        Speed of Conveyor Belt / Feed Speed

        6-30 m/min

        Size of Abrasive Belt

        1330x2620 mm

        Motor Required

        1st Head 40/30 H.P.


        2nd Head 30/25 H.P.

        Feed Motor

        5 H.P.

        Hoist Motor

        0.5 H.P.

        Working Pressure

        0.55 Mpa

        Consumption of Compressed Air

        1.56 m3/ h

        Volume of sucked air

        7896 m3/h

        Average Speed of Sucked Air

        25-30 m/s

        Overall Dimensions (LxWxH)

        2350x2570x2200mm

        All specifications, dimensions & design characteristic are subject to change without prior notice.
