Auto Planner Wide Belt Sander Machine (1300-K-R-RP)
20000.00 INR/Unit
Product Details:
- Supply Ability : 100 Unit Per Month
- Click to view more
X
Price And Quantity
- 20000.00 INR/Unit
- 1 Unit
Trade Information
- 100 Unit Per Month
- 1 Months
Product Description

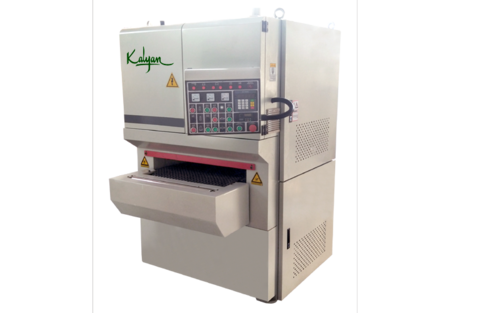

Auto Planner Wide Belt Sander Machine (1300-K-R-RP)
- Working width : 51”
- Thickness: 5”
- Sanding belt size : 1320x2620mm
- 1st Head motor : 30hp
- Spiral planer (dia. 180mm) tool of the 1st wheel.
- 2nd head motor: 30 hp.
- Drum dia. 240mm, Hardness : hs85+/-5 Duro.
- 3r Head motor: 25 hp.
- Drum dia: 210mm, Hardness ; hs 65+/-5 Duro.
- With Variable Frequency Feed Drive(VFD)
- Spiral cutting blade size 15x15x2.5mm
Specifications:
| Work width | 1300 mm |
| Min work length | 510 mm |
| Work thickness | 2 ~ 125 mm |
| Planner cutting motor | 30 HP |
| Second main motor | 30 HP |
| Third head motor | 25 HP |
| Feeding motor | 5 HP |
| Table hoist motor | 1/2 HP |
| Cleaning Brush motor | 1/2 HP |
| 1st Cutting head speed | 36 m/s |
| 2nd Head abrasive belt speed | 23 m/s |
| 3rd Head abrasive belt speed | 18 m/s |
| Feeding speed | 5 ~ 25 m/min |
| Abrasive belt size | 2620x1320 mm |
| Work pressure | 0.4 ~ 0.6 mpa |
| Air volume | 8200 m3 / h |
| Net weight | 5200 Kgs. |
All specifications,dimensions & design characteristic are subject to change without prior notice.
