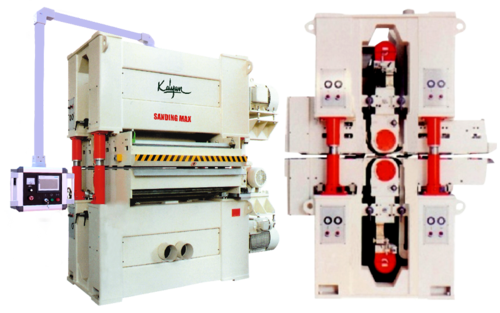

    TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE (KID-1300-RP)

    TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE (KID-1300-RP)

    20000.00 -8000000.00 INR/Unit

    Product Details:

    X

    Price And Quantity

    • 20000.00 -8000000.00 INR/Unit
    • 1 Box

    Trade Information

    • 100 Box Per Month
    • 1 Months

    Product Description

    TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE MODEL KID-1300-R (CHINA MAKE)

    Complete with Electric Control Panel and required motors having following features.

    • The Top and bottom heads are capable of calibrating.
    • Variable speed unit. (Frequency Control Drive).
    • Cleaning and Polishing roller.
    • Microcomputer Controller (The machine adopts the advanced computer terminal that makes the operation easy and clear).
    • Dia. of 1st head roller  400.

    HEAVY AND STRONG STRUCTURE FRAME.

    • The frame structure of the machine is heavy-duty which is composed of advanced Q235 high-quality plate box-type frame welding. The inside of frame is specially treated to eliminate the expansion gap of metal temperature difference thus improving the stability of high-speed running of the equipment and achieve the functions of shock absorption, vibration absorption and noise elimination.

    SANDING BELT TENSIONING BEAM AND STRUCTURE

    • Adopting the structure of double air cylinder to tension the sanding belt, so as to balance the forces on every points of the belt and ensure the smooth rotary running, improving service life and sanding effect of the belt.

    SANDING ROLLER DRIVING PARTS

    • Adopting high-quality couplet imported from Italy, improving the transmission strength and damping effect, changing the original transmission structure, and protecting the transmission shaft of sanding roller is not affected by radial force to ensure the service life.

    PLC – Mitsubishi / Schneider / Delta

    All major electricals - Siemens/Schneider

    Specification:

    MODEL

    KID-1300-R

    Working width

    1300 mm

    Working thickness

    0-100 mm

    Working length

    > 500 mm

    Sanding belt linear speed

    31 mm/s

    Precision

    ± 0.08 mm

    Feed speed

    8-40 m/min

    Conveyor / Feed Motor

    11 Kw

    Motor for cleaning brush

    0.75 Kw x 2

    Motor for head elevation (Up & Down Movement)

    2.2 Kw

    Top & Bottom Head Motor

    90 / 75 kw x 2 nos.

    PLC

    Siemens

    Touch Screen

    Siemens

    Touch Screen

    Hanging Type

    All major Electricals

    Siemens

    Bearing

    FAG / SKF

    Work pressure

    0.7 Mpa

    Air flow quantity

    42000 m3/h

    Sanding Belt size

    3000x1350 mm

    Net weight

    17000 kgs

    All specifications, dimensions & design characteristic are subject to change without prior notice.
