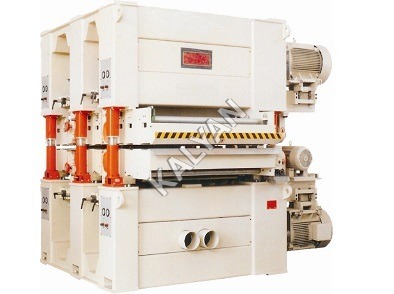

        FOUR  HEAD TOP AND BOTTOM / DOUBLE DECK WIDE BELT SANDING MACHINE

        FOUR HEAD TOP AND BOTTOM / DOUBLE DECK WIDE BELT SANDING MACHINE

        Product Details:

        • Product Type BELT SANDING MACHINE
        • Power Source Electricity
        • Operating Type Automatic
        • Surface Treatment Painted
        • Dimension(L*W*H) 3450x3500x3150mm Millimeter (mm)
        • Weight (kg) 35000kgs Kilograms (kg)
        • Color White
        • Click to View more
        X

        Price And Quantity

        • INR/Unit
        • 1 Inch

        Product Specifications

        • Painted
        • Industrial
        • Automatic
        • 3450x3500x3150mm Millimeter (mm)
        • White
        • 35000kgs Kilograms (kg)
        • BELT SANDING MACHINE
        • Electricity

        Trade Information

        • 100 Inch Per Month
        • 1 Months

        Product Description


        Specification:

        Working width

        1300mm

        Working thickness

        5-100mm

        Working length

        > 500mm

        First sanding belt speed

        28m/s

        Second sanding belt speed

        26m/s

        Feed speed

        8-40m/min

        1st Top & Bottom Head Motor

        75 kw x 2 Nos.

        2nd Top & Bottom Head Motor

        55 kw x 2 nos.

        Work pressure

        0.55Mpa

        Air flow quantity

        32000m3/h

        Sanding Belt size

        3300x1350/3320x1350mm

        Overall size

        3450x3500x3150mm

        Net weight

        35000kgs

        All specifications, dimensions & design characteristic are subject to change without prior notice.
