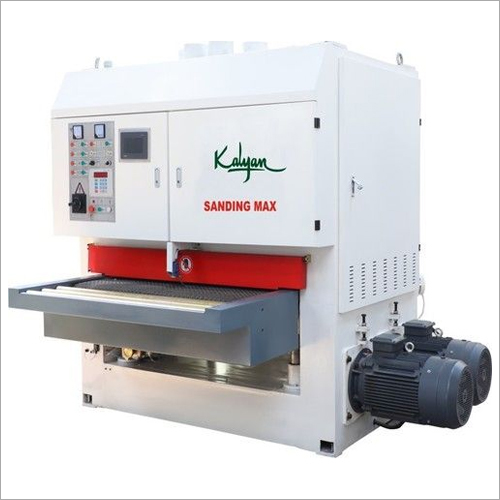

Two Head Wide Belt Sanding Machine

Two Head Wide Belt Sanding Machine

Product Details:

X

Price And Quantity

  • INR/Unit
  • 1 Unit

Trade Information

  • 100 Unit Per Month
  • 1 Months

Product Description

TWO HEAD WIDE BELT SANDING MACHINE  MODEL KI-1300-R-RP (HEAVY DUTY) (IMPORTED)

complete with Electric Control Panel and required motors having following features:

  • Abrasive belt size 103  in length.
  • 1st Head is capable of sanding having 30 hp. Motor.
  • 2nd Head with contact roller and pad capable of calibrating / sanding and polishing of panel having 25 H.P. motor (optional 20 HP.)
  • Variable speed unit.
  • Cleaning & Polishing roller having 1 H.P.
  • Microcomputer Controller.
  • Jumping Air Pad
  • Nozzle of air jet for cleaning of sanding belt.
  • Thickness Measuring Unit or Automatic device for working thickness.
  • Extension table in the infeed, having 3 extra rollers.
  • Automatic centering of conveyor belt.
  • Motorised lifting of the table.
  • Emergency Stop.
  • Ampere meter.
  • Rubberised Pressing Rollers.
  • Star Delta Start
  • Belt Safety Emergency.
  • Auto positioning of table.
  • In case of emergency stop, table lowers automatically.
  • Speed of Conveyor Belt / Feed Speed 6~30 m/min
  • Vaccum Suction Conveyor Belt.

The Vaccum suction conveyor belt straightens warped panels and holds them securely on the table.

Cost of Compressor & Dust Collector unit (Including Air Bags, Dust Hood, Pipes) are not included in the machine.

Specifications:

MODEL

KI-1300-R-RP

Width of Panel

40-1300mm

Thickness of Sanded Panel

3~160mm

Speed of Abrasive Belt on 1st Unit

18m/s

Speed of Abrasive Belt on 2nd Unit

12 m/s

Speed of Conveyor Belt / Feed Speed

6~30 m/min

Size of Abrasive Belt

1320x2620 mm

Motor Required

1st Head 30 HP


2nd Head 25 HP

Feed Motor

5 HP

Hoist Motor

0.5 HP

Vacuum fan motor

7.5 HP

Working Pressure

0.55 Mpa

Consumption of Compressed Air

1.56m3/ h

Volume of sucked air

7896m3/h

Average Speed of Sucked Air

25~30 m/s

Overall Dimensions (LxWxH)

2600x2800x2750mm

Weight

3600 Kgs.

All specifications, dimensions & design characteristic are subject to change without prior notice.
