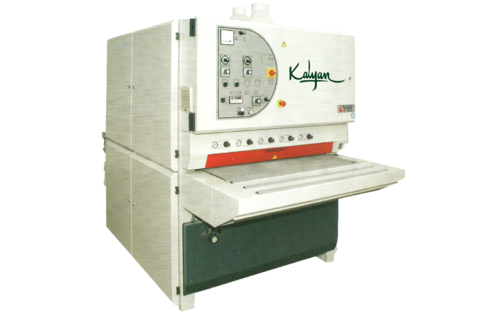

      Two Head Wide Belt Sander (BS-1100-RP)

      Two Head Wide Belt Sander (BS-1100-RP)
      Two Head Wide Belt Sander (BS-1100-RP)
      Send Inquiry
      Product Code : BS-1100-RP
      Price And Quantity
      • Minimum Order Quantity
      • 1 Unit
      • Price
      • 20000.00 INR/Unit
      Product Description

      Two Head Wide Belt Sander (Bs-1100-rp)

      Complete With Following Features:

      • 1St Head Is Capable Of Calibrating/ Sanding Having 15Hp Motor.
      • 2Nd  Head Equipped With Sanding Unit/ Roller & Pad Having 15Hp Motor.
      • Segment Pad (34 Segments With Computer).
      • Electronic Control Nc Touch Screen 7.5”
      • Length Of Sanding Belt 2200Mm.
      • Electronic Display Unit.
      • Automatic Centering Of Conveyor Belt.
      • Automatic Positioning Of The Table,
      • Pneumatic Control Height Of The Rollers Rp.
      • Motorized Lifting Of The Table.
      • Emergency Limited Bar.
      • Ampere  Meter.
      • Rubberised Spring  Pressure Rollers.
      • Inverter For Feeding Motor3-12 M/Min Having 2.2Kw.
      • Inverter For The Main Motors For Both Heads.
      • Automatic Star Delta Start Switches For Both Motors.
      • Belt Safety Emergency.
      • Table Extension 0.5M- Front & Rear.
      • Timing Blower System Of Belt For Bith Units.
      • Cleaning Brush Roller On The Exit  ɸ180Mm Having  .75Kw.



      Specifications:

      Model

      BS-1100-RP

      Useful Working Width

      1100mm

      Diam. of roller

      180 mm

      Useful Working Height

      160 mm

      Min. Working Height

      3 mm

      Min. Working length

      150/350 mm

      Sanding belt length

      2200 mm

      Main Motor Power

      15 HP(11 kW) x 2

      Feeding speed of the mat

      3~12 m/min

      Total consumption of air

      4000 m3/h

      Suction dust hoods diam.

      2 x 120 mm

      Segment Pad

      80 mm

      Pressure rollers diam.

      45 mm

      All specifications, dimensions & design characteristic are subject to change with out prior notice.

      Trade Information
      • Supply Ability
      • 100 Unit Per Month
      • Delivery Time
      • 1 Months
