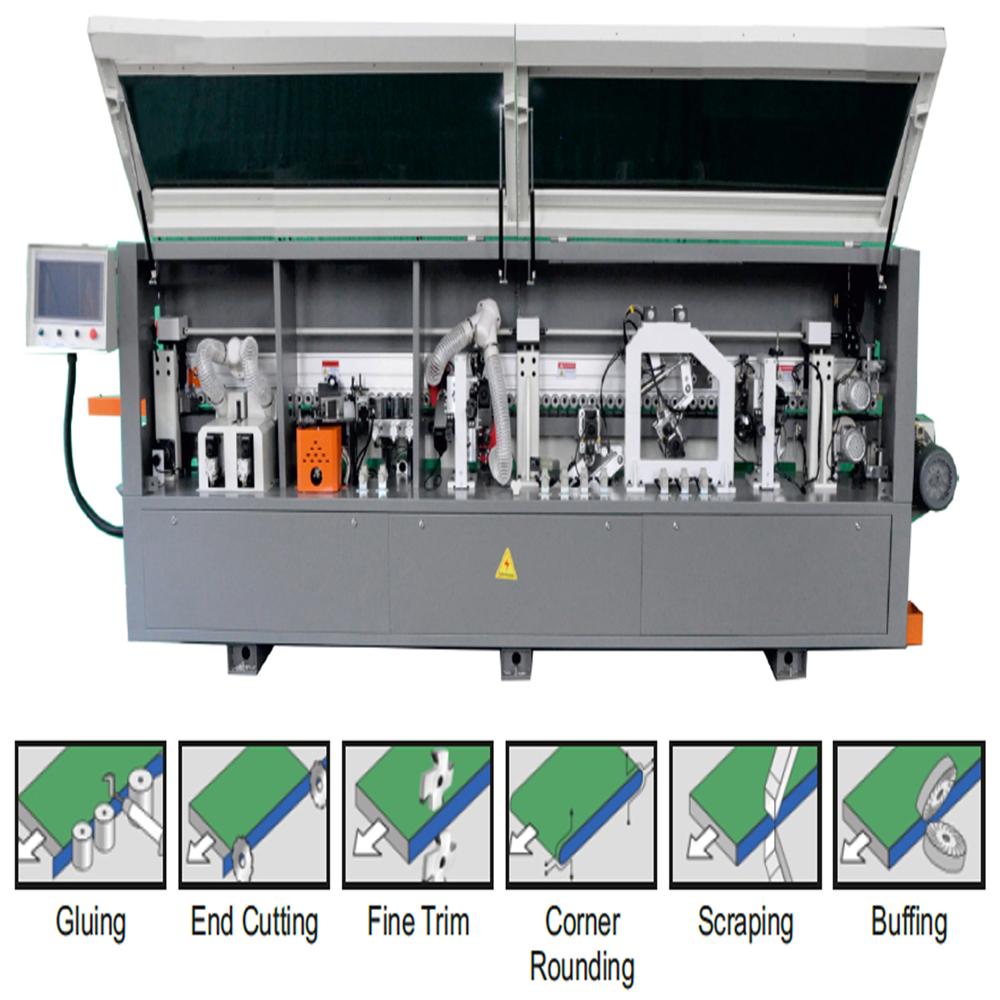

AUTOMATIC EDGE BANDING MACHINE (NB5CJ)

Get a Price/Quote

Product Details:

Product Type Woodworking Machine
Power Electric
Automation Automatic
Dimension (L*W*H) 5500 x 1450 x 1650 mm Millimeter (mm)
Weight 2300 kg Kilograms (kg)
Color White
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

AUTOMATIC EDGE BANDING MACHINE (NB5CJ) Price And Quantity

Minimum Order Quantity 1 Unit

AUTOMATIC EDGE BANDING MACHINE (NB5CJ) Product Specifications

Automation Automatic
Dimension (L*W*H) 5500 x 1450 x 1650 mm Millimeter (mm)
Product Type Woodworking Machine
Power Electric
Weight 2300 kg Kilograms (kg)
Color White

AUTOMATIC EDGE BANDING MACHINE (NB5CJ) Trade Information

Supply Ability 100 Unit Per Month
Delivery Time 1 Months

Product Description

Technical data:

Panel length	120 mm
Panel width	80 mm
Panel thickness	10-60 mm
Edge tape thickness	0.4-3 mm
Feeding speed	12-22 m/min
Power supply	380 V; 50 Hz
Air pressure required	0.7 MPa
Total power	12.3 kW
Approx. weight	2300 kg
Overall dimension	5500 x 1450 x 1650 mm

All specifications, dimensions & design characteristic are subject to change without prior notice.
