STRAIGHT LINE RIP SAW (BOTTOM)
Product Details:
- Product Type Woodworking Machine
- Machine Style Vertical
- Voltage 110-215 Volt (v)
- Power Electric
- Automation Automatic
- Warranty 1 year
- Click to View more
X
STRAIGHT LINE RIP SAW (BOTTOM) Price And Quantity
- 1 Unit
STRAIGHT LINE RIP SAW (BOTTOM) Product Specifications
- Automatic
- Vertical
- Woodworking Machine
- 1 year
- 110-215 Volt (v)
- Electric
STRAIGHT LINE RIP SAW (BOTTOM) Trade Information
- 10-15 Days
Product Description

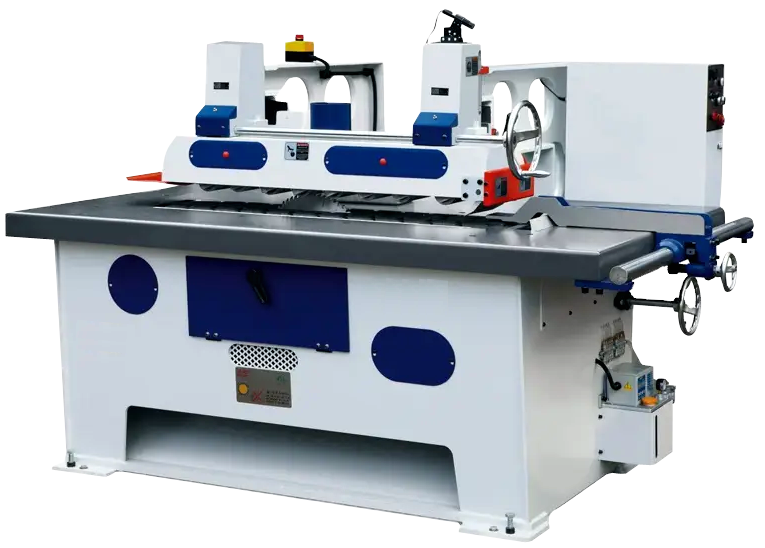

STRAIGHT LINE RIP SAW (BOTTOM)
MODEL SLRV-164A (IMPORTED)
Complete with following features : -
Max. cutting thickness 120 mm.
Table Anti Kick Back Finger.
Automatic Lubrication Unit.
Required electric motors.
Laser Gun.
Tool Box.
Specifications:
| MODEL | SLRV-164A |
| Cutting Thickness | 120 mm |
| Max. Cutting Width | 640 mm |
| Min. Cutting Length | 260 mm |
| Max. Saw Blade Diameter | 405 ~ 500 mm |
| Main Motor Power | 15 HP |
| Feeding Motor Power | 2 HP |
| Total Power | 17 HP |
| Saw Shaft Diameter | 50.8 mm |
| Spindle Speed | 2930 r/min |
| Feeding Speed | 10-33 m/min |
| Working desk size | 2020 x 1170 mm |
| Overall dimensions | 2260x1850x1450 mm |
| Packing size | 2360x1950x1550 mm |
| Weight | 1800 kgs. |
