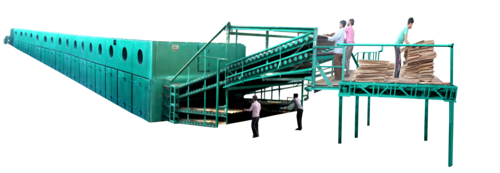

Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks
Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks
Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks

Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks

Product Details:

  • Material Mild steel
  • Automatic Grade Automatic
  • Color Green
  • Click to View more
X

Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks Price And Quantity

  • 1 Box

Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks Product Specifications

  • Green
  • Automatic
  • Mild steel

Jet Ventilated Roller Track Veneer Dryer 12 Section 4 Decks Trade Information

  • 100 Box Per Month
  • 1 Months

Product Description

Kalyan Roller Track Veneer Dryer is meant for drying the Core Veneer & Face Veneer and is the Dryer of choice all over the country as well as abroad.Veneer Dryer is available in various sizes and different configurations from 4 Sections 3 Decks to 16 Sections 4 Decks. Kalyan Veneer Dryer is the most economical dryer available because it consumes much lower power as compare to the any other brand. Our Jet Ventilated Roller Track Veneer Dryer can run on Steam as well as Thermic Fluid.

12 Section having 4 Decks. Jet Ventilated Automatic Roller Track 24000 MM in Length of the heating section having working width of 4600mm. and 3300 MM in Height having 10 nos. Compact Drying Chambers with 4 Decks. 1200 MM Single Cooling Section and 1900 MM long Single Roller Feeding Arrangements for each Deck.

The Dryer will be supplied with variable Speed (Frequency Drive) Gear Box, Chain Tension Devices, Cast Iron Bushes, Pinions, Sprockets and 1 Pitch Drive Roller Chain painted with Red Oxide Primer and Two coats of finished enamel paint. The Dryer will be completed with 16 nos. Electric Motors compact panel boards, Electrical controls, Relays, Heat Exchangers and Temperature Meters.

Technical Specification:

Number of Sections

12

Number of Decks

4

Drying Chamber Length

24 mtr

Drying Chamber Width

4.62 mtr

Cooling Chamber Length

---------

Standard

1200 mm

Option No. 1

2 Cooling = 2000 mm

Option No. 2

4 Cooling = 4000 mm

Dummy Cooling

--------

Optional :

2 mtr

Feeding Section

-------

Standard

1900 mm

Options :- Long Feeding Section

--------

Length of the Top Deck

6180 mm

Length of the 2nd Deck (from the top)

6180 mm

Length of the 3rd Deck

1900 mm

Length of the 4th Deck

1900 mm

Length of the Discharge End

3600 mm

Heat Requirement

---------

Saturated Steam at 120 P.S.I.

1900 kg/hr

Thermic Oil Requirements

19,00,000 KCL

Initial Moisture Content

30-45%

Final Moisture Content

8-12%

Power Requirement

----------

Heating Section

36 hp

Cooling Section

2 hp

Conveyor Drive Unit

5 hp x 2 nos.

One Drive for top 2 Decks another drive for bottom 2 Decks

----------

Total Electric Motors

48 hp

Production Capacity (in Sq mtr) :

---------

Production Capacity using Thermic

4140 Sq mtr.

Fluid Heater on 1 mm basis per hrs

---------

Production Capacity Using Steam

2780 sq. mtr.

Boiler on 1 mm basis per hrs

--------

All specifications,dimensions & design characteristic are subject to change without prior notice.
