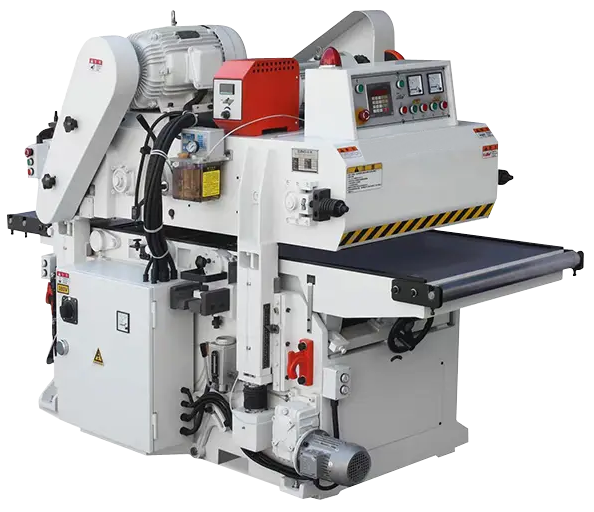

DOUBLE SURFACE PLANNER MODEL DSPV-635

Get a Price/Quote

MOQ : 1 Unit

DOUBLE SURFACE PLANNER MODEL DSPV-635 Specification

DOUBLE SURFACE PLANNER MODEL DSPV-635

(IMPORTED)

Complete with following features :

Variable speed for the feed.

Spike Conveyor for Positive Feeding.

The planning-knife can be replaced quickly.

Quick belt tension adjustment.

Automatic Lubrication System

Electrical Panel.

Electric Motor.

Spiral Cutter, the precisely machined helical cutter head provides an extremely smooth, low noise cut.

Digital display of the table position, Adopting digital control to control the working thickness automatically

Specifications:

MODEL	DSPV-635
Working thickness	10-200 mm
Working width	25 635 mm
Min. working length	260 mm
Max. cutting depth	6 mm
Cutting spindle dia.	101 mm
Cutting spindle speed	5800 r/min
Feeding speed	8 18 m/min
Upper cutting spindle motor power	15 HP
Bottom cutting spindle motor power	10 HP
Feeding motor power	3 HP
Lifting motor power	0.75 HP
Dust exit dia.	150 mm
Overall size	2550x1130x1630mm
Packing size	2620x1230x1780mm
Net weight	2530 Kgs.
Gross weight	2800 Kgs.
