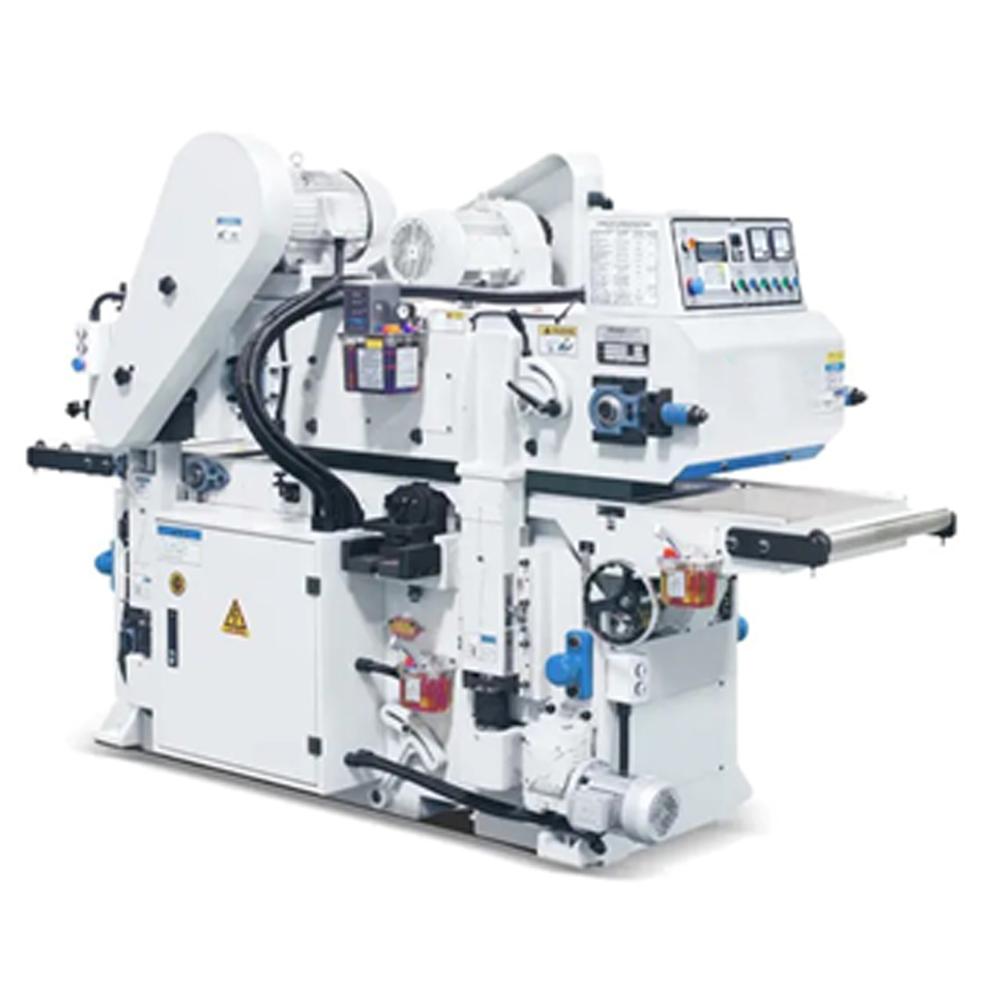

DOUBLE SIDE PLANNER MODEL DSPV-470A

Get a Price/Quote

MOQ : 1 Unit

DOUBLE SIDE PLANNER MODEL DSPV-470A Specification

DOUBLE SIDE PLANNER MODEL DSPV-470A

(IMPORTED)

Complete with following features :

Variable speed for the feed.

Spike Conveyor for Positive Feeding.

The planning-knife can be replaced quickly.

Quick belt tension adjustment.

Automatic Lubrication System

Electrical Panel.

Electric Motor.

Spiral Cutter, the precisely machined helical cutter head provides an extremely smooth, low noise cut.

Digital display of the table position, Adopting digital control to control the working thickness automatically

Specifications:

MODEL	DSPV-470A
Working thickness	9 - 200 mm
Working width	10-470 mm
Min. working length	300 mm (200mm-Opt.)
Max. cutting depth	Upper Knife 5 mm Lower Knife 5 mm
Cutting spindle dia.	100 mm
Cutting spindle speed	5000 r/min
Feeding speed	3 24 m/min
Upper cutting spindle motor power	10 HP
Bottom cutting spindle motor power	7.5 HP
Feeding motor power	3 HP
Lifting motor power	0.5 HP
Total Power	21 HP
Dust exit dia.	150 mm
Packing Size	2600x1050x1800mm
Net Weight	2350 Kgs.
