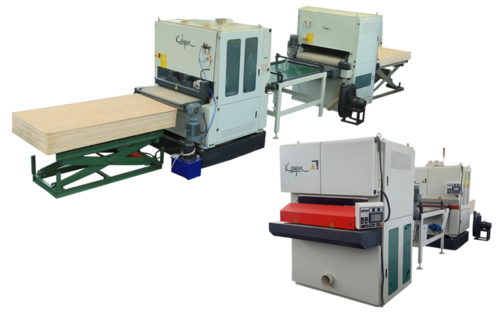

TOP & BOTTOM SURFACE WIDE BELT SANDERS

MODEL

1300-R-RP/BT

1300-R-RP

Width

1300mm

1300mm

Minimum Length

420mm

420 mm

Work Thickness

3-160mm

3-160 mm

First Head Motor

25 HP

25 HP

Second Head Motor

25 HP

25 HP

Feeding motor

5 HP

5 HP

Lifter Motor

0.5 HP

0.5 HP

Brush Roller Motor

0.5 HP

0.5 HP

Vacuum Fan Motor

7.5 HP

7.5HP

First head Abrasive Belt speed

15 m/s

15 m/s

Second head Abrasive Belt speed

18 m/s

12 m/s

Feeding speed controlled by inverter (Rexroth Make)

5 30 m/min

5-30 m/min

Abrasive Belt size

2620†™š†™š1320

2620x1320 mm

Work pressure

0.4 0.6 mpa

0.4-0.6 mpa

Air volume

8500 m³

8500 m³

Weight

3700 Kgs.

3800 Kgs..
