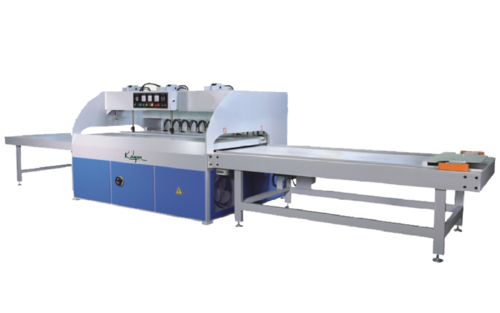

HIGH FREQUENCY EDGE GLUE PRESS (KGW-1030H)

Next > >

Send Inquiry

Product Code : KGW-1030H

Price And Quantity

Product Description

HIGH FREQUENCY EDGE GLUE PRESS (TAIWAN MAKE)

Specifications:

MODEL	KGW-1030H
Input power	3 - 380V
High Frequency Power	30 KW, Max.: 35 KW
Transmitting Tube	8T25RA TOSHIBA
H.F. Adjustor	Hand Wheel Adjustor
High Tension Transformer	AC 8000V, DC10000V. 40KVA
Rectifier	Patented, High Tension Resistance, Full Wave
Variable Capacitor	Patented, 4 Pc. One Set
Work Range	Max. 1220X2440X15~60mm
Pressure Apply	5 hp. Hydraulic System
Pressure Way	Upper and Side Pressure
Cylinders	UPÃ-3 Pc. / Side-12 Pcs.
Inlet Feeding Table	1 hp Motor drive chained-pusher
Anti Glue-stick	Upper and Lower Steel Plate put Anit-Glue-Stick to prevent glue from stick on
Tube Protector	Patented tube protector is to protect the expensive tube from over-heat burnt in case of wrong operation
Spark Suppressor	Patented spark suppressor is to protect machine plate and work piece from short voltage burnt
Grounding	Whole plate grounding
Anti-Clamp Protection	Equipped 2-Fences at entrance Of inlet and outlet
Control System	Standard Control System
Dimension LxWxH	7600mmx2200mmx2100mm
Net Weight	4600 kgs.
Gross Weight	4950 kgs.
Package	Wooden Pallet, 20 Container, Plastic coverage
