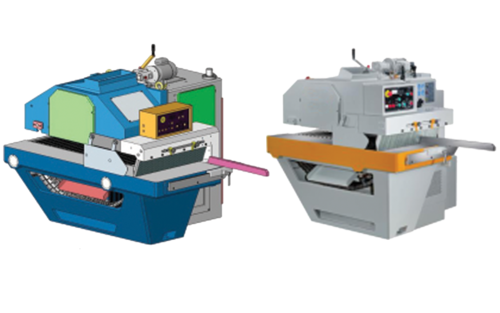

      HEAVY DUTY GANG SAW MACHINE (KI-120C)

      HEAVY DUTY GANG SAW MACHINE (KI-120C)
      HEAVY DUTY GANG SAW MACHINE (KI-120C)
      Send Inquiry
      Product Code : KI-120C
      Price And Quantity
      • Minimum Order Quantity
      • 1 Box
      • Price Range
      • 20000.00 - 8000000.00 INR/Unit
      Product Description

      Heavy Duty Gang Saw Machine

      Model KI-120C (Taiwan Make)

      Complete with following features

      • Max. Capacity to take wooden block/plank of 120mm (thick) x 300 mm (Wide)
      • To cut wet as well as Dry Timber.
      • Feed motor 2 HP
      • Elevating Motor of 0.5 HP.
      • Saw Arbor motor of 40 HP.
      • The machine is with short stock device for cutting minimum length of 300mm
      • Self lubrication unit is provided.
      • Electric panel
      • Variable speed drive for the control of the feed.

      Technical Specifications

      MODEL

      KI-120C

      Max. Cutting Thickness

      120 mm

      Max. Cutting Thickness-under Long Pressure Plate

      (Using Dia. 14" saw blade) 95 mm

      Max. Cutting Thickness (for CE type)

      110 mm

      Min. Cutting Thickness

      10 mm

      Max. Cutting Width

      300 mm

      Distance from Column to Link Chain Center

      360 mm

      Min. Working Length

      300 mm

      Max. Sawblade Diameter

      380 mm (15")

      Max. Sawblade Diameter (for CE type)

      350 mm (14")

      Min. Sawblade Diameter

      200 mm (8”)

      Sawblade Bore Diameter

      70 mm

      Saw Arbor Diameter

      50 mm

      Saw Arbor Speed

      3800 rpm

      Saw Arbor Motor

      30, 40 or 50 HP

      Feed Motor

      2 HP (4P / 8P)

      Feed Motor (w/converter) optional

      3 HP

      Variable feed speed

      7.5 - 30 m/min

      Variable Feed Speed (w/converter) optional

      2.5 - 24 m/min

      Dust Hood Diameter

      2x150 mm or 1x200 mm

      Table Height from Floor

      740 mm

      Table area (LxW)

      1530x760 mm

      Overall Dimensions(LxWxH)

      2100x1500x1435 mm

      Packing Dimensions (LxWxH)

      1800x1700x1600 mm

      Net Weight

      2050 kgs

      Gross Weight

      2300 kgs


      All specifications, dimensions & design characteristic are subject to change without prior notice.

      Trade Information
      • Supply Ability
      • 100 Box Per Month
      • Delivery Time
      • 1 Months
