Heavy Duty Gang Saw Machine
Product Details:
- Supply Ability : 100 Box Per Month
- Click to view more
Price And Quantity
- 1 Box
Trade Information
- 100 Box Per Month
- 1 Months
Product Description

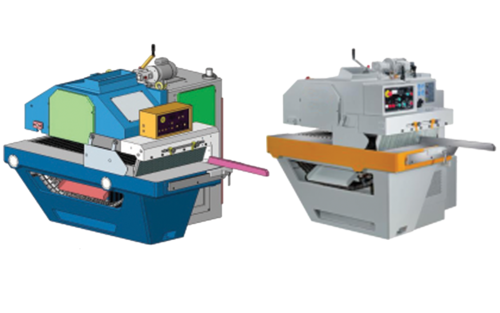

Heavy Duty Gang Saw Machine
Model KI-120C (Taiwan Make)
Complete with following features
- Max. Capacity to take wooden block/plank of 120mm (thick) x 300 mm (Wide)
- To cut wet as well as Dry Timber.
- Feed motor 2 HP
- Elevating Motor of 0.5 HP.
- Saw Arbor motor of 40 HP.
- The machine is with short stock device for cutting minimum length of 300mm
- Self lubrication unit is provided.
- Electric panel
- Variable speed drive for the control of the feed.
Technical Specifications
| MODEL | KI-120C |
| Max. Cutting Thickness | 120 mm |
| Max. Cutting Thickness-under Long Pressure Plate | (Using Dia. 14" saw blade) 95 mm |
| Max. Cutting Thickness (for CE type) | 110 mm |
| Min. Cutting Thickness | 10 mm |
| Max. Cutting Width | 300 mm |
| Distance from Column to Link Chain Center | 360 mm |
| Min. Working Length | 300 mm |
| Max. Sawblade Diameter | 380 mm (15") |
| Max. Sawblade Diameter (for CE type) | 350 mm (14") |
| Min. Sawblade Diameter | 200 mm (8âââ¬) |
| Sawblade Bore Diameter | 70 mm |
| Saw Arbor Diameter | 50 mm |
| Saw Arbor Speed | 3800 rpm |
| Saw Arbor Motor | 30, 40 or 50 HP |
| Feed Motor | 2 HP (4P / 8P) |
| Feed Motor (w/converter) optional | 3 HP |
| Variable feed speed | 7.5 - 30 m/min |
| Variable Feed Speed (w/converter) optional | 2.5 - 24 m/min |
| Dust Hood Diameter | 2x150 mm or 1x200 mm |
| Table Height from Floor | 740 mm |
| Table area (LxW) | 1530x760 mm |
| Overall Dimensions(LxWxH) | 2100x1500x1435 mm |
| Packing Dimensions (LxWxH) | 1800x1700x1600 mm |
| Net Weight | 2050 kgs |
| Gross Weight | 2300 kgs |
All specifications, dimensions & design characteristic are subject to change without prior notice.
