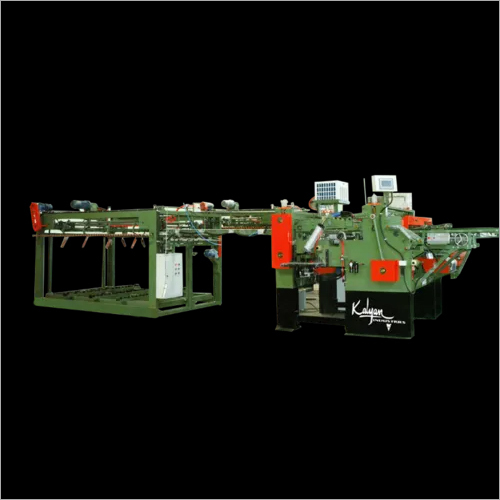

    FULLY AUTOMATIC PLC LONG CORE COMPOSER (HTCC/Z-1300)

    FULLY AUTOMATIC PLC LONG CORE COMPOSER (HTCC/Z-1300)

    20000.00-8000000.00 INR/Unit

    Product Details:

    X

    Price And Quantity

    • 1 Box
    • 20000.00-8000000.00 INR/Unit

    Trade Information

    • 100 Box Per Month
    • 1 Months

    Product Description

    https://www.youtube.com/watch?v=EXoZZv19KcQ&feature=youtu.be

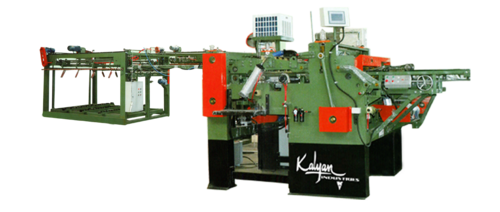

    FULLY AUTOMATIC PLC LONG CORE COMPOSER MODEL - HTCC/Z-1300

    • Front Clipper & Jointer with infeed conveyor.
    • Out feed Veneer Clipper with conveyor.
    • Auto Stacker Unit.
    • The machine is supplied with PLC Control & required motors & panel.
    • Machine having 7 Strings i.e. can join veneer at 7 different positions.
    • Highly strengthened thread, improve product horizontal tensile force flexibility, no break.
    • Edge Gluing.
    • Servo motor (Siemens make) for infeed.
    • Servo motor (Siemens make) for 6 Nos. Chain Conveyor for joining unit.
    • German Make Rotary Cylinder / for Glue applying Fingers.
    • Delta make PLC.
    • Taiwan Make electromagnetic Clutch Brake.

    Specifications:

    Working Width

    800 ~ 1290 mm

    Feeding Speed

    0-35 m/min (adjustable)

    Capacity (4x 8)

    300 sheets / h

    Overall size of composer (LxWxH)

    3600x2600x2500 mm

    Overall size of stacker (LxWxH)

    4000 x2200x2300 mm

    Overall size of complete line

    12000x2600x2500 mm

    Front Feeding servo motor power

    3.5 kw (Siemens)

    Back feeding servo motor power

    3.5 kw (Siemens)

    Total Power

    19 kw

    Edge cutter drive

    Motor + Electromagnetic Clutch Brake (Taiwan)

    PLC

    DELTA

    Rotary cylinder

    FESTO (Germany)

    Net weight

    7000 kgs.

    Automatic Veneer Corrector

    Yes

    Water cooling air condition

    Yes

    4x4 / 4 x8

    Yes

    Cooling Unit

    Yes

    Platform

    Yes

    All specifications, dimensions & design characteristic are subject to change without prior notice.
