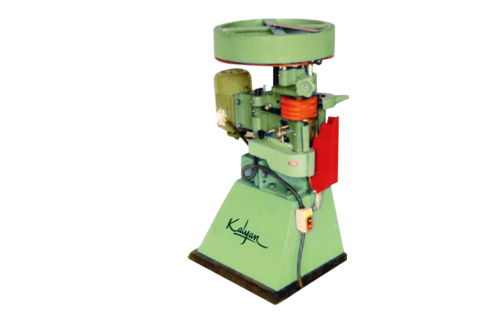

DOWEL CROSS CUT AND CHAMFERING MACHINE

Get a Price/Quote

Product Details:

Product Type Woodworking Machine
Power Electric
Motor 1/2 HP
Dimension (L*W*H) 560 x 500 x 580 mm Millimeter (mm)
Weight 70 Kg Kilograms (kg)
Color Green
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DOWEL CROSS CUT AND CHAMFERING MACHINE Price And Quantity

Minimum Order Quantity 1 Unit

DOWEL CROSS CUT AND CHAMFERING MACHINE Product Specifications

Motor 1/2 HP
Weight 70 Kg Kilograms (kg)
Product Type Woodworking Machine
Power Electric
Color Green
Dimension (L*W*H) 560 x 500 x 580 mm Millimeter (mm)

DOWEL CROSS CUT AND CHAMFERING MACHINE Trade Information

Supply Ability 100 Unit Per Month
Delivery Time 1 Months

Product Description

Dowel Cross Cut And Chamfering Machine

Electric Control Panel.
Required electric motor.
Suitable for cutting dowels form 6 to 18mm in diameter, 20 to 150mm in length.
Combined cut-off and chamfering in a unit.
Cutting length adjustable.
Capacity 1800 pieces per hour.
Simple loaded the wood dowel in to the revolving tray, the machine will perform cut off and chamfering.
Easy movement form, one job site to another.
Used together with CF-18 Dowel Milling Machine will be a complete set of perfect mechanism for making dowel.
Dust proof switch.
Patented improved tension design on pressure roll no. 52479

Specifications:

Model

CF-36

Range of Working Dia.

f6 - f18 mm

Range of Working Length

20 mm -150 mm

Drive Motor

1/2 HP

Capacity

36 piece / min

Machine Size (L x W x H)

560 x 500 x 580 mm

Packing Size (L x W x H)

620 x 610 x 750mm

Packing Size (L x W x H)

CF-18-CF36: 870 x 690 x 750mm /180Kg

Net Weight

70 Kg

Gross Weight

100 Kg

All specifications, dimensions & design characteristic shown in the catalogues are subject to change without prior notice.
