Send InquiryDOUBLE SIDE THICKNESS PLANNER
MOQ : 1 Unit
DOUBLE SIDE THICKNESS PLANNER Specification
- Product Type
- Woodworking Machine
- Machine Style
- Vertical
- Voltage
- 110-215 Volt (v)
- Power
- Electric
- Automation
- Automatic
- Warranty
- 1 year
DOUBLE SIDE THICKNESS PLANNER Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 5-10 Days
DOUBLE SIDE THICKNESS PLANNER About

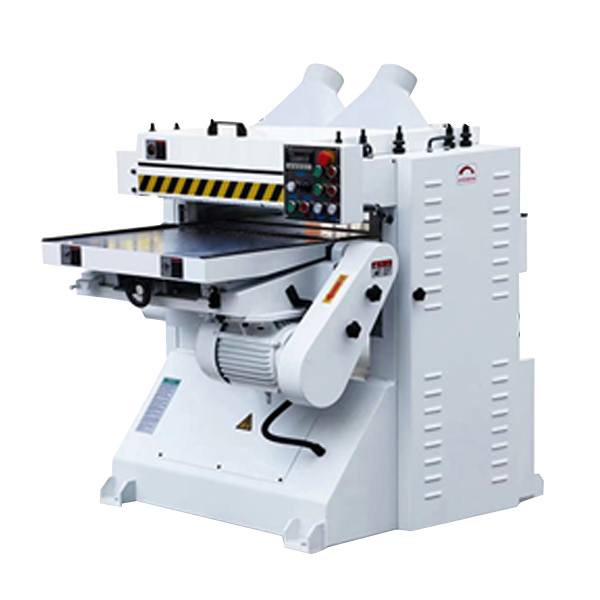

DOUBLE SIDE THICKNESS PLANNER
MODEL DTPV-2063 (IMPORTED)
Complete with following features :
Spiral Cutter, the precisely machined helical cutter head provides an extremely smooth, low noise cut.
The planning-knife can be replaced quickly.
Electrical Panel.
Electric Motor.
Specifications:
| MODEL | DTPV-2063 |
| Working thickness | 9-180 mm |
| Max. working width | 630 mm |
| Processing Range | 5-150mm |
| Max. cutting depth | 6 mm |
| Min. working length | 220 mm |
| Working Table Size | 1310 x 634mm |
| Spindle speed | 5700 r/min |
| Feeding speed | 5 15 m/min |
| Upper cutting spindle motor power | 4 kw |
| Bottom cutting spindle motor power | 7.5 kw |
| Feeding motor power | 0.75 kw |
| Overall size | 1335x1035x1310 mm |
| Net weight | 1080 Kgs. |
