DOUBLE SIDE THICKNESS PLANNER
1.0 INR/none
Product Details:
X
DOUBLE SIDE THICKNESS PLANNER Price And Quantity
- 1.0 INR/none
- 1 none
Product Description

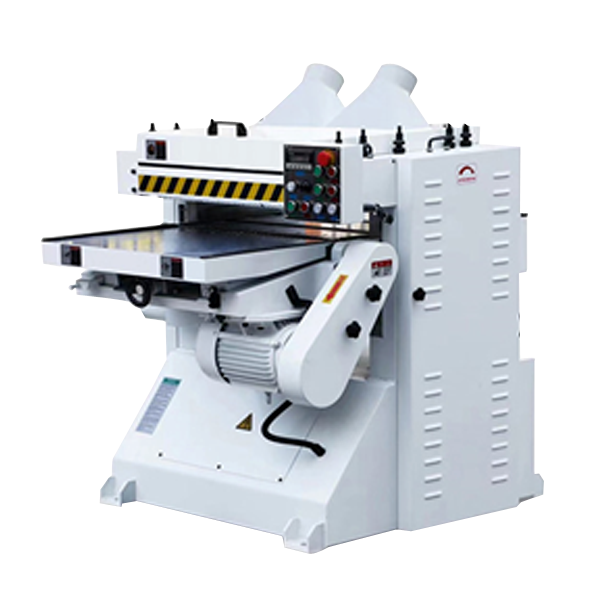

DOUBLE SIDE THICKNESS PLANNER
MODEL DTPV-2063 (IMPORTED)
Complete with following features :
Spiral Cutter, the precisely machined helical cutter head provides an extremely smooth, low noise cut.
The planning-knife can be replaced quickly.
Electrical Panel.
Electric Motor.
Specifications:
|
MODEL |
DTPV-2063 |
|
Working thickness |
9-180 mm |
|
Max. working width |
630 mm |
|
Processing Range |
5-150mm |
|
Max. cutting depth |
6 mm |
|
Min. working length |
220 mm |
|
Working Table Size |
1310 x 634mm |
|
Spindle speed |
5700 r/min |
|
Feeding speed |
5 15 m/min |
|
Upper cutting spindle motor power |
4 kw |
|
Bottom cutting spindle motor power |
7.5 kw |
|
Feeding motor power |
0.75 kw |
|
Overall size |
1335x1035x1310 mm |
|
Net weight |
1080 Kgs. |
