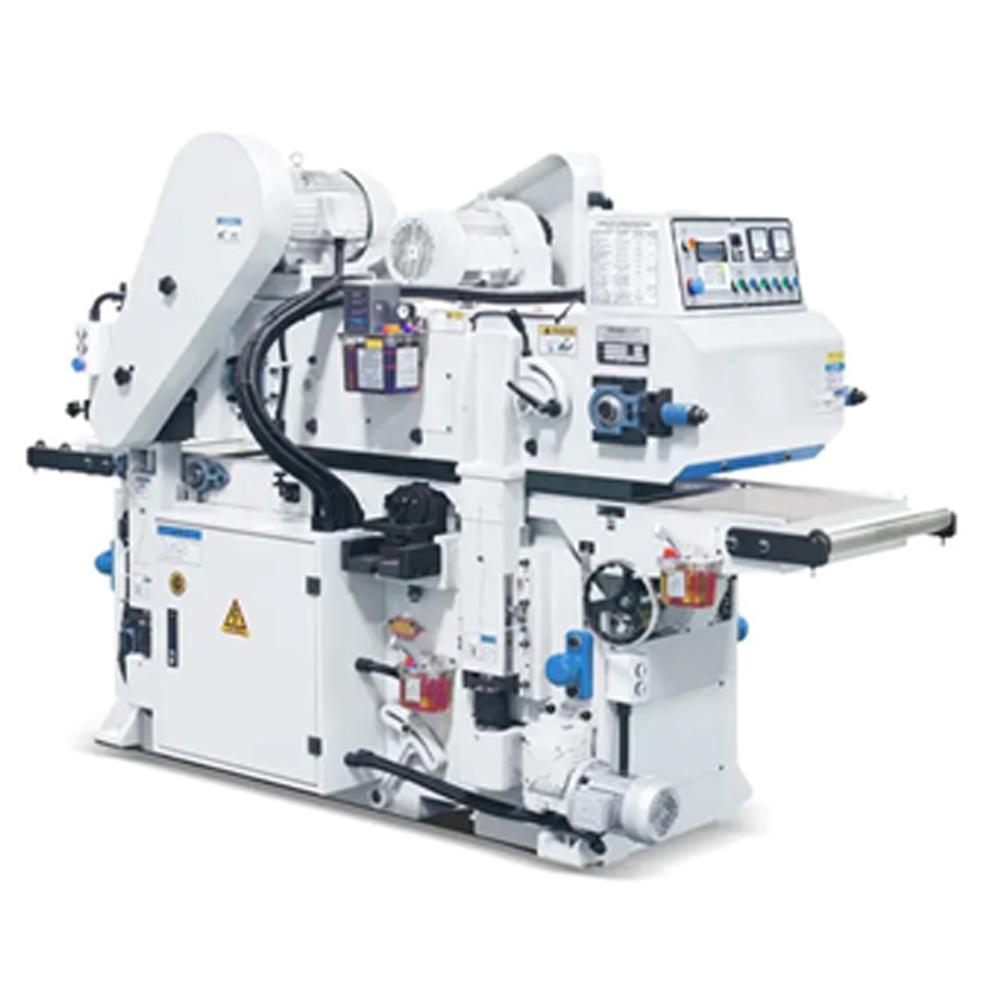

DOUBLE SIDE PLANNER MODEL DSPV-610
1.0 INR/none
Product Details:
X
DOUBLE SIDE PLANNER MODEL DSPV-610 Price And Quantity
- 1.0 INR/none
- 1 none
Product Description
DOUBLE SIDE PLANNER MODEL DSPV-610
(IMPORTED)
Complete with following features :
Variable speed for the feed.
Spike Conveyor for Positive Feeding.
The planning-knife can be replaced quickly.
Quick belt tension adjustment.
Automatic Lubrication System
Electrical Panel.
Electric Motor.
Spiral Cutter, the precisely machined helical cutter head provides an extremely smooth, low noise cut.
Digital display of the table position, Adopting digital control to control the working thickness automatically
Specifications:
|
MODEL |
DSPV-610 |
|
Working thickness |
9 - 200 mm |
|
Working width |
10-610 mm |
|
Min. working length |
300 mm (200mm-Opt.) |
|
Max. cutting depth |
Upper Knife 5 mm Lower Knife 5 mm |
|
Cutting spindle dia. |
101 mm |
|
Cutting spindle speed |
5000 r/min |
|
Feeding speed |
3 24 m/min |
|
Upper cutting spindle motor power |
15 HP |
|
Bottom cutting spindle motor power |
10 HP |
|
Feeding motor power |
4 HP |
|
Lifting motor power |
0.5 HP |
|
Total Power |
29.5 HP |
|
Dust exit dia. |
150 mm |
|
Packing Size |
2100x1150x1700mm |
|
Weight |
2450 Kgs. |
