Home » Products » Plywood Making Machines » ROTARY PEELING LATHE MACHINE K.I.-1400

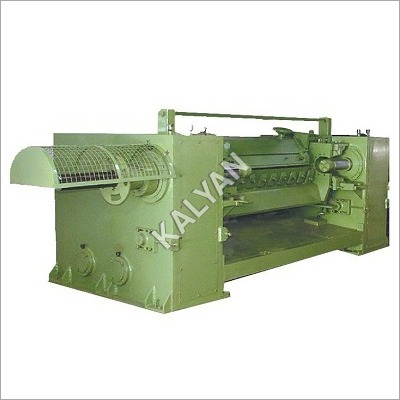

ROTARY PEELING LATHE MACHINE K.I.-1400

ROTARY PEELING LATHE MACHINE K.I.-1400
ROTARY PEELING LATHE MACHINE K.I.-1400
Send Inquiry
Product Code : K.I.-1400
Product Description

Log Peeling Lathe Machine Model K.I.-1400

With The Following Features:

  • Having Capacity To Take 10 Girth.
  • Gear Box Fitted With Pneumatic Clutch.
  • Compressor With Motor.
  • Machine Will Be Without Knife & Electric Motors I.E. 30 Hp For Main Drive + 3 Hp. For The Movement Of The Spindles + 3hp For The Movement Of The Carriage.

Specifications:

Model

K.I.-1400

Hydraulic Back Roller

----

Mechanical Operated

----

Maximum Length of Knife

1400 mm

Minimum Length of Log

800 mm

Maximum peelable Dia.

1000 mm

Diameter of Spindle

110 mm

Minimum Core Dia.

80 mm

Maximum R.P.M. of Spindle

175 rpm

Thickness (24 Nos.)

0.5 mm - 3.2 mm

Motors Total Power Required

48 HP

Weight

6 Tonne

All specifications, dimensions & design characteristic are subject to change without prior notice.
