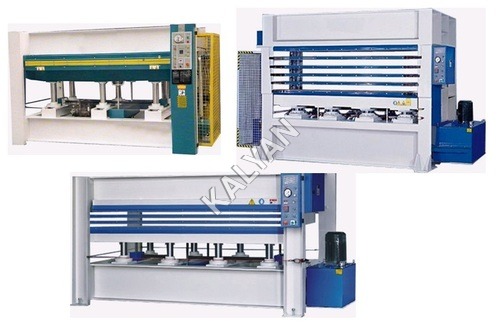

HYDRAULIC HOT PRESS (SIZE 8' x 4')

HYDRAULIC HOT PRESS (SIZE 8' x 4')
HYDRAULIC HOT PRESS (SIZE 8' x 4')
Product Code : HYDRAULIC HOT PRESS
Product Description

 HYDRAULIC HOT PRESS SIZE 8'×4'



Specification:

Model

100 T Single DL

120T Single DL

160T Single DL

200T Single DL

Press Platen Dimensions

2500×1300×42mm

2500×1300×42

2500×1300×42

2500×1300×42mm

Max. Pressure of Workable

100 t (3.1kg/cm2)

120 t (3.7kg/cm2)

160 t (4.9kg/cm2)

200 t (6.2kg/cm2)

Quantity of Oil-Cylinder

8 pcs

8 pcs

8 pcs

8 pcs

Diameter of Cylinder

f85mm

f100mm

f110mm

f 120mm

No. of Openings

1 No.

1 No.

1 No.

1 No.

Max. Opening of Press Platen

300mm

300mm

300mm

300mm

Heating Device Power

36 kw

5.5 kw

36 kw

36 kw

Installed Power

5.5 kw

--

5.5 kw

7.5 kw

Overall Size (L×W×H)(mm)

3600×1650×2100mm

3600×1700×2100mm

3600×1700×2100mm

--

Weight

6000 Kgs.

7000 Kgs.

7000 Kgs.

--

All specifications, dimensions & design characteristic shown in the catalogues are subject to change without prior notice





Model Available

Hydraulic Hot Press 8x4

  • 100T - Single / Three Day Light
  • 120T - Single / Three Day Light
  • 160T - Single / Three Day Light
  • 200T - Single / Three / Five Day Light
  • 300T -  Three / Five Day Light
  • 400T -  Three Day Light
  • 500T -  Five Day Light
