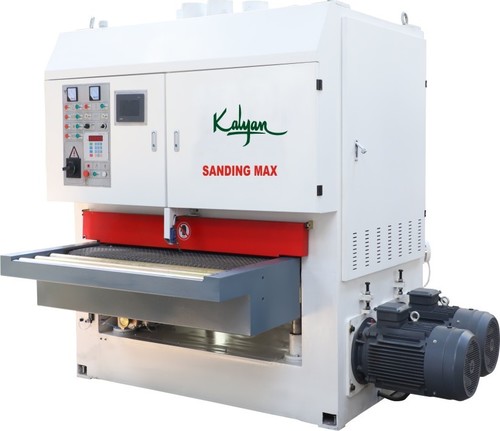

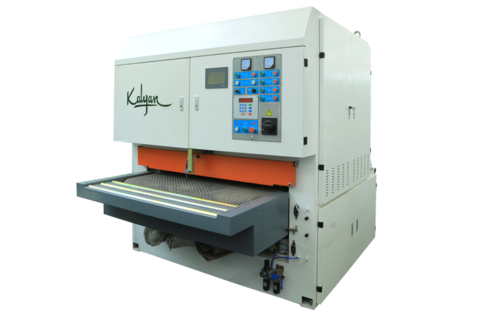

Two Head Wide Belt Sanding Machine

Get a Price/Quote

Product Details:

Type Two Head Wide Belt Sanding Machine
Automatic Grade Automatic
Weight 3600 Kilograms (kg)
Dimension (L*W*H) 2600x2800x2750mm Millimeter (mm)
Color White
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Two Head Wide Belt Sanding Machine Price And Quantity

Minimum Order Quantity 1 Box

Two Head Wide Belt Sanding Machine Product Specifications

Type Two Head Wide Belt Sanding Machine
Color White
Weight 3600 Kilograms (kg)
Dimension (L*W*H) 2600x2800x2750mm Millimeter (mm)
Automatic Grade Automatic

Two Head Wide Belt Sanding Machine Trade Information

Supply Ability 100 Box Per Month
Delivery Time 1 Months

Product Description

Specifications:

MODEL	KI-1300-R-RP
Width of Panel	40-1300mm
Thickness of Sanded Panel	3-160mm
Speed of Abrasive Belt on 1^st Unit	18m/s
Speed of Abrasive Belt on 2^nd Unit	12 m/s
Speed of Conveyor Belt / Feed Speed	6-30 m/min
Size of Abrasive Belt	1320x2620 mm
Motor Required	1^st Head-30 HP
Motor Required	2^nd Head-25 HP
Feed Motor	5 HP
Hoist Motor	0.5 HP
Vacuum fan motor	7.5 HP
Working Pressure	0.55 Mpa
Consumption of Compressed Air	1.56m3/ h
Volume of sucked air	7896m3/h
Average Speed of Sucked Air	25-30 m/s
Overall Dimensions (LxWxH)	2600x2800x2750mm
Weight	3600 Kgs.

All specifications, dimensions & design characteristic are

subject to change without prior notice.
