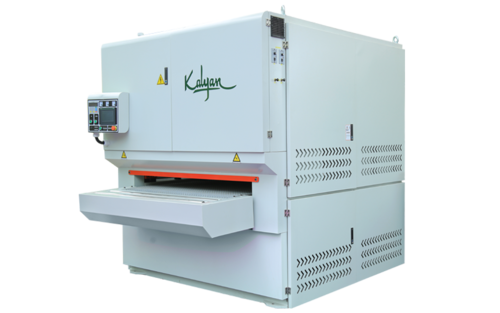

    FOUR HEAD BOTTOM SURFACE WIDE BELT SANDING MACHINE

    FOUR HEAD BOTTOM SURFACE WIDE BELT SANDING MACHINE
    FOUR HEAD BOTTOM SURFACE WIDE BELT SANDING MACHINE
    Send Inquiry
    Product Code : KI-1300-RP-RP-B-B/BT
    Product Description

    Specifications:

    MODEL

    KI-1300-RP-RP-B-B/BT

    Width of Panel

    40-1300mm

    Thickness of Sanded Panel

    3~160mm

    Speed of Abrasive Belt on 1st Unit

    18 m/s

    Speed of Abrasive Belt on 2nd Unit

    12 m/s

    Speed of Conveyor Belt / Feed Speed

    6~30 m/min

    Size of Abrasive Belt

    2620x1320 mm

    Motor Required



    Brushing Unit

    Brushing Unit

    1st Head  25 H.P.

    2nd Head 25 H.P

    3rd Head 7.5 H.P

    4th Head 7.5 H.P

    Feed Motor

    5 H.P.

    Hoist Motor

    0.5 H.P.

    Working Pressure

    0.55 Mpa

    Consumption of Compressed Air

    1.56m3/ h

    Volume of sucked air

    7896m3/h

    Average Speed of Sucked Air

    25~30 m/s

    Overall Dimensions (LxWxH)

    2600x3400x2750 mm

    Weight

    4500 Kgs.

    Allspecifications, dimensions & design characteristic are subject to changewithout prior notice.

    KALYAN INDUSTRIES
