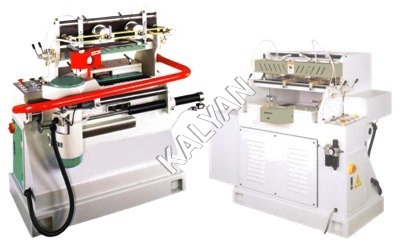

      High Speed Dovetailer

      High Speed Dovetailer
      High Speed Dovetailer
      Send Inquiry
      Product Code : HIGH SPEED DOVETAILE
      Price And Quantity
      • Minimum Order Quantity
      • 1 Unit
      • Price Or Price Range
      • INR/Unit
      Product Description

      High Speed Dovetailer

      • The special design fully eliminates cutter loosening problems while increasing cutter srvuce life.
      • Exclusively emplys collet chuck for clamping  the cutter with assure a more secure clamping.
      • The cutting transmission belt is side mounted providing convenient belt replacement.
      • Tenon/ mortise height& depth are fast and accurate to adjust.
      • Individual scale permits accurate reading for adjustment amount.
      • The tenon/ mortise can be produced in continous or skip cutting mode.
      • Electric control panel.
      • Required motors.

      Specifications:

      Model

      KI-HP-118

      Thickness of Tenon

      7~60 mm

      Width of Tenon

      6~18 mm

      Depth of Tenon

      10~30 mm

      Cutter Spindle Vertical Adjustment

      30 mm.

      Maximum Work piece size

      1500m. (L)x480 (w)

      Cutter Chucking Capacity

      Dia 12 mm

      Work piece Clamping Cylinders

      4 pcs.

      Spindle Speed

      21,500 rpm

      Spindle Motor

      2 HP

      Working Pressure

      5 kg /cm2

      Dust Hood Outlet

      Dia 100 mm

      Machine Dimensions (LxWxH)

      1330x850x1200 mm

      Packing dimensions (LxWxH)

      1550x970x1410mm

      Net Weight

      480 kg

      Gross Weight

      570 kg

      All specifications, dimensions & design characteristic shown in the catalogues are subject to change without prior notice

      Trade Information
      • Supply Ability
      • 100 Unit Per Month
      • Delivery Time
      • 1 Months
