Home » Products » Plywood Making Machines » TWO HEAD WIDE BELT SANDING MACHINE

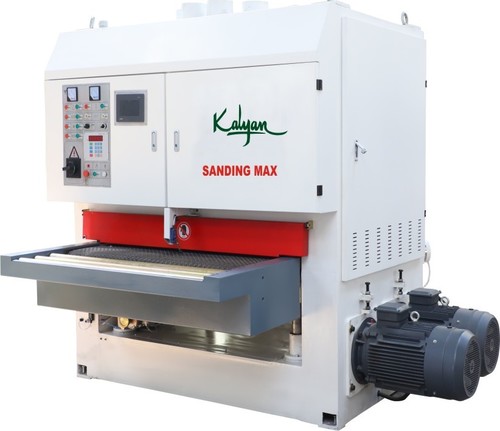

TWO HEAD WIDE BELT SANDING MACHINE

TWO HEAD WIDE BELT SANDING MACHINE
TWO HEAD WIDE BELT SANDING MACHINE
Send Inquiry
Product Code : WIDE BELT SANDER
Product Description

Specifications:

MODEL

KI-1300-RP-RP-B

Width of Panel

40-1300mm

Thickness of Sanded Panel

3~160mm

Speed of Abrasive Belt on 1st Unit

18 m/s

Speed of Abrasive Belt on 2nd Unit

12 m/s

Speed of Conveyor Belt / Feed Speed

7~35 m/min

Size of Abrasive Belt

1320x2620 mm

Motor Required

1st Head  25 HP

2nd Head 25 HP

Brushing Unit

7.5 H.P

Feed Motor

5 HP

Hoist Motor

0.5 HP

Vacuum fan motor

7.5 HP

Working Pressure

0.55 Mpa

Consumption of Compressed Air

1.56m3/ h

Volume of sucked air

7896m3/h

Average Speed of Sucked Air

25~30 m/s

Overall Dimensions (LxWxH)

2600x3100x2750 mm

Weight

4300 Kgs.

Allspecifications, dimensions & design characteristic are subject to changewithout prior notice.
