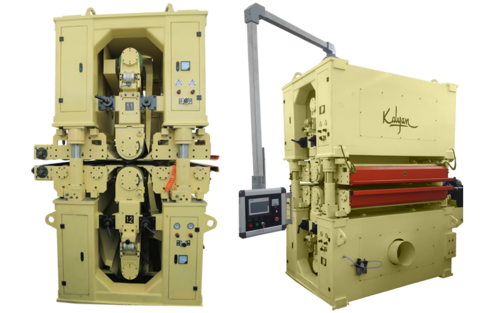

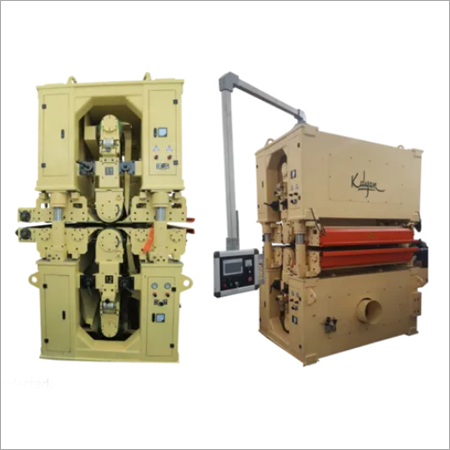

TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE (KID-1300-R )

TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE (KID-1300-R )
TWO HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE (KID-1300-R )
Send Inquiry
Product Code : KID-1300-R
Product Description

HEAD TOP AND BOTTOM WIDE BELT SANDING MACHINE MODEL KID-1300-R

Complete with Electric Control Panel and required motors having following features.

  • The Top and bottom heads are capable of calibrating.
  • Variable speed unit. (Frequency Control Drive).
  • Cleaning and Polishing roller.
  • Microcomputer Controller (The machine adopts the advanced computer terminal that makes the operation easy and clear).

Technical specification

MODEL

KID-1300-R

Working width

1300 mm

Working thickness

0-100 mm

Working length

> 700 mm

Sanding belt speed

32 m/s

Feed speed

8-40 m/min

Conveyor / Feed Motor

11 Kw

Motor for cleaning brush

0.75 Kw x 2

Motor for head elevation (Up & Down Movement)

2.2 Kw

Top & Bottom Head Motor

75 kw x 2 nos.

PLC

Siemens

Touch Screen

Siemens

Touch Screen

Hanging Type

All major Electricals

Siemens

Bearing

FAG Germany Make

Work pressure

0.7 Mpa

Air flow quantity

28000 m3/h

Sanding Belt size

2560x1330 mm

Overall size (LxWxH)

3450x1880x3150 mm

Net weight

11500 kgs

All specifications, dimensions & design characteristic are subject to changewithout prior notice.TWO
