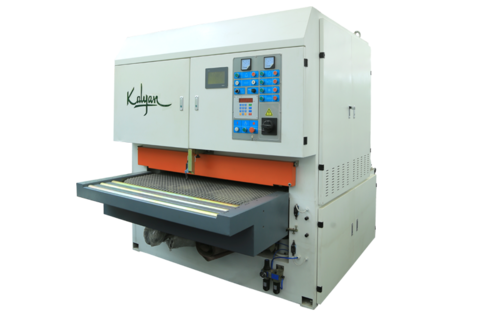

THREE HEAD WIDE BELT SANDING MACHINE (KI-1300-R-RP-RP-B)

THREE HEAD WIDE BELT SANDING MACHINE (KI-1300-R-RP-RP-B)
THREE HEAD WIDE BELT SANDING MACHINE (KI-1300-R-RP-RP-B)
Send Inquiry
Product Code : KI-1300-R-RP-RP-B
Product Description

THREE HEAD WIDE BELT SANDING MACHINE MODEL KI-1300-R-RP-RP-B (IMPORTED)

Complete with Electric Control Panel and required motors having following features :-

  • Abrasive belt size 103” in length.
  • 1% Head is capable of Sanding having 30 HP motor.
  • 24 Head with contact roller and pad capable of sanding and polishing of panel having 25 HP motor (optional 20 HP
  • 3” Head with contact roller and pad capable of calibrating / sanding and polishing of panel having 25HP motor (optional 20 HP)
  • Brusher capable of Polishing & Buffing having 7.5hp motor (it works like a Vth Head).
  • Jumping Air Pad
  • Nozzle of air jet for cleaning of sanding belt.
  • VACCUM SUCTION CONVEYOR BELT.
  • The Vaccum suction conveyor belt straightens warped panels and holds them
  • securely on the table.
  • Thickness Measuring Unit or Automatic device for working thickness.
  • Extension table in the in feed, having 3 extra rollers.
  • Automatic centering of conveyor belt.
  • Motorised lifting of the table.
  • Emergency Stop.
  • Ampere meter.
  • Rubberised Pressing Rollers.
  • Star Delta Start
  • Belt Safety Emergency.
  • Auto positioning of table.
  • In case of emergency stop, table lowers automatically.

Specifications:

MODEL

KI-1300-R-RP-RP-B

Width of panel

40 ~ 1300 mm

Thickness of sanded panel

2.5 ~ 150 mm

Size of abrasive belt

1330 x 2620 mm

SPEED OF ABRASIVE BELT ON

1st unit

19 m/s

2nd Unit

17 m/s

3rd Unit

14 m/s

FEED SPEED

Speed of Conveyor Belt

7 ~ 35 m/min

POWER REQUIRED

1st Head

30 hp

2nd Head

25 hp

3rd Head

25 hp

FEEDING

Feed Motor

10 hp

Table Hoist

1 hp

Brusher

7.5 hp

Working pressure

0.6 MPa

Average Speed of Sucked Air

25~30 m/s

Overall Dimensions (LxWxH)

2600x3600x2750 mm

Weight

5500 Kgs.

All specifications, dimensions & design characteristic are subject to change without prior notice.
