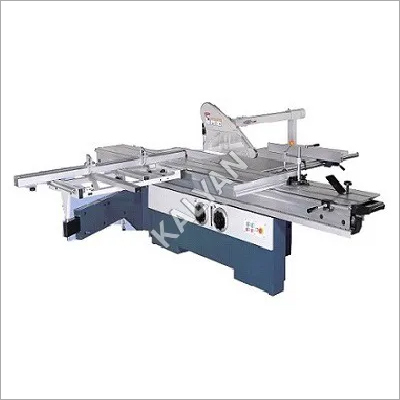

      SLIDING TABLE PANELSIZING SAW

      SLIDING TABLE PANELSIZING SAW
      SLIDING TABLE PANELSIZING SAW
      Send Inquiry
      Product Code : PANEL SAW - CHINESE
      Price And Quantity
      • Minimum Order Quantity
      • 1 Unit
      • Price Or Price Range
      • INR/Unit
      Product Description

      Specifications:

      Sliding table dimension

      3200x395 mm

      Cast iron table

      548x896 mm

      Extension table (rear)

      952x896 mm

      Extension table (front)

      830x320 mm

      Table size

      1500x1726 mm

      Round rail

      40 mm

      Main saw blade (Max.)

      400 mm

      Main saw bore

      30 mm

      Max. cutting height at 90 (400mm)

      130 mm

      Max. cutting height at 45 (400mm)

      90 mm

      Main motor power (1 ph)

      7.5 HP (5.6 kw (3ph)

      Main blade speed

      3000/4000/5000 rpm

      Scoring saw blade

      120 mm

      Scoring saw blade bore

      20 mm

      Scoring blade motor power

      1 HP (0.75 kw)

      Scoring blade speed

      8000 rpm

      Cutting width

      1300 mm

      Cutting width adjustment

      Manual

      Main saw blade tilting adjustment

      Manual

      Main saw height adjustment

      Manual

      Scoring saw adjustment

      manual

      Saw guard

      Simple (overhead guard as option)

      Dust collection system (overhead guard)

      120/63mm (120/102mm)

      N.W / G.W

      546 / 637 Kgs.

      All specifications, dimensions & design characteristic are subject to change without prior notice.

      Trade Information
      • Supply Ability
      • 100 Unit Per Month
      • Delivery Time
      • 1 Months
