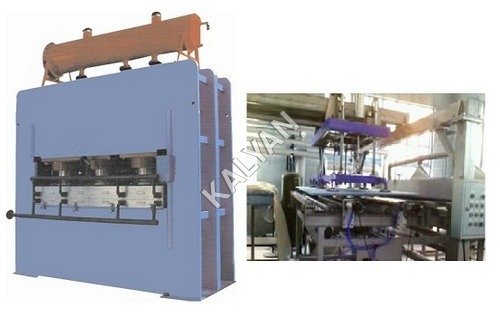

Short Cycle Press

Short Cycle Press
Short Cycle Press
Product Code : 75
Product Description

Our dexterous team of professionals enable us to manufacture, export and supply a qualitative range of Short Cycle Press. Provided press is used for overlaying various kinds of laminating and other materials over the wooden sheets. This press is designed and manufactured using components and progressive techniques under the stern guidance of our deft professionals. Available in various designs and technical specifications to fulfill the specific needs of clients, we offer this Short Cycle Press at industry leading prices.

Features:

  • Robust construction

  • Optimum performance

  • Lower power consumption

  • Dimensional stability

 Technical Specifications :

Total Pressure

16000 KN

Board Feeding ways

9 Feet - Length wise

Upper Platen Dimension

1940×2900×160mm

Lower Platen Dimension

1940×2900×120mm

Opening of Platen

>= 200mm

Board Pressing Area

1830×2750mm

No. of Cylinders / Diameter

8nos.×f320×200mm stoke

Lifting Cylinder

4 Nos. / 80×50×200 mm

Pressure of Lifting Cylinder

9-12 Mpa

Board Loading Time

<=5 sec.

Non Working Closing Time

<=2.5 – 3 sec.

Working Closing Time

< = 3-5 sec.

Board Lamination Time

20-35 sec.

Opening and Unloading Time

6 sec.

Total Cycle Time

45 - 50 second

Structural Configuration

Welded Frame

Thickness of Steel Frame

65mm

Pump

Shanghai (China Make)

Make of Hydraulic Valves

Japan

Temperature of Platen

180-2200C

IN feed Table

PLC Controlled

(Mistubishi Make)

Out Feeding Table

Vacuum Type - Maximum  Load Lifting Capacity 80 Kg.

Total Power

22 + 0.75 + 0.75 KW

Weight

About 45 Tons

Work Temperature

180-200 ± 1o can be set through the temperature meter.

All specifications, dimensions & design characteristic shown in the catalogues are subject to change without prior notice
