RADIAL ARM SAW

RADIAL ARM SAW
RADIAL ARM SAW
Product Code : RADIAL ARM SAW
Product Description

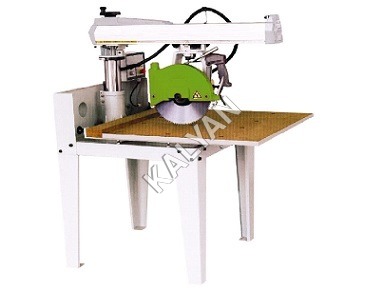

Designed with a circular saw over a sliding horizontal arm, this Radial Arm Saw is ideal to cut various kinds of materials in precise designs and lengths. The offered saw is manufactured using quality-approved components that are sourced from the authentic vendors of the market. Provided arm saw finds its wide applications in various furniture and metal processing industries. To meet the specific requirements of clients, we offer this Radial Arm Saw in several designs and technical specifications at market leading prices.

Features:

  • Less power consumption

  • Large cross section of swing frame

  • High productivity

  • User friendly interface

Our range also includes:

  • Radial Arm Saw Model KI-BS-888

  • Radial Arm Saw Model KI-BS-999

Technical Specifications:

Model

BS-888

Motor

4.5 HP

Motor speed

2900 rpm

Bearing for rails

8 pcs

Spindle bore

 1" (25.4 mm)

Blade diameter

12"(305mm) / 14"(355mm)

Head swiveling

0 - 1800

Head tilting

0 - 900

Max trimming width

860 mm

Max. cross cutting length

620 mm

Table area L X W

900x1100mm

Machine size (Mm)

1120x1100x1170mm

Packing size (Mm)

1150x970x790 mm

Net weight

200 kgs

Gross weight

240 kgs

All specifications, dimensions & design characteristic are subject to change without prior notice.

Radial Arm Saw Model KI-BS-999


Technical Specifications:

MODEL

KI-BS-999

Max. cross cutting length

900 mm

Maximum thickness of cut

130 mm

Max. cutting depth

60 mm

Blade diameter

16"

Rotating speed

2800 r/min

Power

4.5 HP

Overall size(LxWxH)

1300x820x1420 mm

Overall size (LxWxH)

1500x820x1420 mm

Net weight

230Kg/ 250 Kg.

All specifications, dimensions & design characteristic are subject to change without prior notice.
