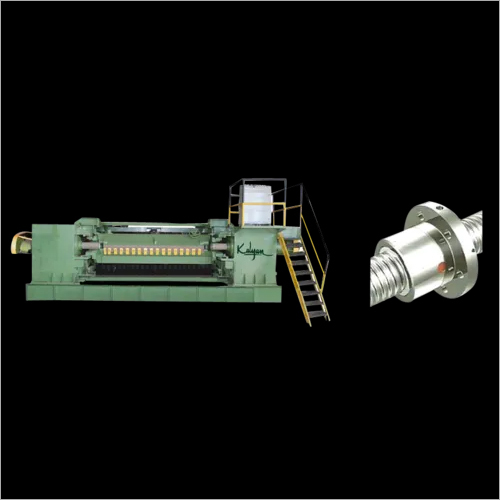

LOG PEELING LATHE MACHINE K.I.–2750 (VS), K.I.-2750

LOG PEELING LATHE MACHINE K.I.–2750 (VS), K.I.-2750
LOG PEELING LATHE MACHINE K.I.–2750 (VS), K.I.-2750
Product Code : K.I.-2750
Product Description
LOG PEELING LATHE MACHINE MODEL K.I.–2750 (VS)


Specifications:




MODEL K.I.-2750 (VS)



Max. Length of Log 2750 mm



Min. Length of Log 900  mm



Max. Peelable Dia. 1600 mm



Diameter of Spindle 125  mm



Max. Chuck Diameter 120-225 mm



Min. Core Dia. 150 mm



Max. r.p.m. of spindle 175



Thickness 0.22 mm - 3.5 mm



Motors total power required 80 HP



All specifications are subject to change without prior notice.









LOG PEELING LATHE MACHINE MODEL K.I.-2750



Specifications:




MODEL K.I.-2750



Max. Length of Log 2750 mm



Min. Length of Log 900  mm



Max. Peelable Dia. 1600 mm



Diameter of Spindle 125  mm



Max. Chuck Diameter 120-225 mm



Min. Core Dia. 150 mm



Max. r.p.m. of spindle 150 rpm



Thickness (24 Nos.) 0.22 mm - 3.5 mm



Motors total power required 72 HP



All specifications, dimensions & design characteristic are subject to change without prior notice.
