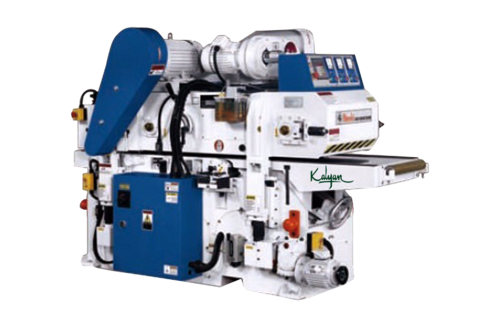

HIGH SPEED DOUBLE SURFACE PLANNER

HIGH SPEED DOUBLE SURFACE PLANNER
HIGH SPEED DOUBLE SURFACE PLANNER
Product Code : DOUBLE SIDE PLANNER
Product Description
HIGH SPEED DOUBLE SURFACE PLANNER


Specifications:

MODEL REC-DSP-610
Capacity
Max. working width 610 mm ( 24'')
Max. working thickness 200 mm ( 8")
Min. working thickness 8 mm
Min. working length 315 mm (12 - ½")
Table area 686x2616 mm (27"x103")
Tool Sizes
Knife sizes 14x14x2.0 mm
Cutter head diameter f 130 mm
Number of spiral knife 6Tx150pcsx2sets
Motor Horsepower
Cutter head speed 4000-6000 r.p.m.
Feed speed 8~22 m/min
Top cutter head motor 15 HP (Opt.20 HP)
Bottom cutter head motor 10 HP (Opt.15 HP)
Feeding motor 3 HP
Elevation motor 1/2 HP
Others
Air suction 6" x 2 holes
Machine dim. (LxWxH) 2770x1545x1720 mm
Packing dim. (LxWxH) 2820x1700x1870 mm
Net weight (approx.) 3000 kgs.
Gross weight (approx.) 3800 kgs.

All specifications, dimensions & design characteristic are subject to change without prior notice.

HIGH SPEED DOUBLE SURFACE PLANNER

Specifications

MODEL KI-DSP-450
Capacity
Max. working width 450 mm ( 18'')
Max. working thickness 170 mm ( 7")
Min. working thickness 8 mm
Min. working length 285 mm (11 - ½")
Table area 534x2312 mm (21"x91")
Tool Sizes
Knife sizes 14x14x2.0 mm
Cutter head diameter f 130 mm
Number of spiral knife 4Tx76pcsx2sets
Motor Horsepower
Cutter head speed 5000-6000 r.p.m.
Feed speed 8~22 m/min
Top cutter head motor 7.5 HP (Opt.10 HP)
Bottom cutter head motor 5 HP (Opt.7.5 HP)
Feeding motor 2 HP
Elevation motor 1/2 HP
Others
Air suction 5" x 2 holes
Machine dim. (LxWxH) 2620x1245x1700 mm
Packing dim. (LxWxH) 2670x1400x1870 mm
Net weight (approx.) 2100 kgs.
Gross weight (approx.) 2600 kgs.
All specifications, dimensions are subject to change without prior notice.

HIGH SPEED DOUBLE SURFACE PLANNER
Specifications:
MODEL KI-DSP-635A
Capacity
Max. working width 635 mm ( 25'')
Max. working thickness 200 mm ( 8")
Min. working thickness 8 mm
Min. working length 315 mm (12 - ½")
Table area 686x2616 mm (27"x103")
Tool Sizes
Knife sizes 14x14x2.0 mm
Cutter head diameter f 130 mm
Number of spiral knife 6Tx156pcsx2sets
Motor Horsepower
Cutter head speed 5000-5500 r.p.m.
Feed speed 7~22 m/min
Top cutter head motor 20 HP (Opt.25 HP)
Bottom cutter head motor 15 HP (Opt.20 HP)
Feeding motor 3 HP (Opt. 5HP)
Elevation motor 1/2 HP
Others
Air suction 6" x 2 holes
Machine dim. (LxWxH) 2770x1570x1720 mm
Packing dim. (LxWxH) 2820x1730x1870 mm
Net weight (approx.) 3200 kgs.
Gross weight (approx.) 4000 kgs.
All specifications, dimensions are subject to change without prior notice.
