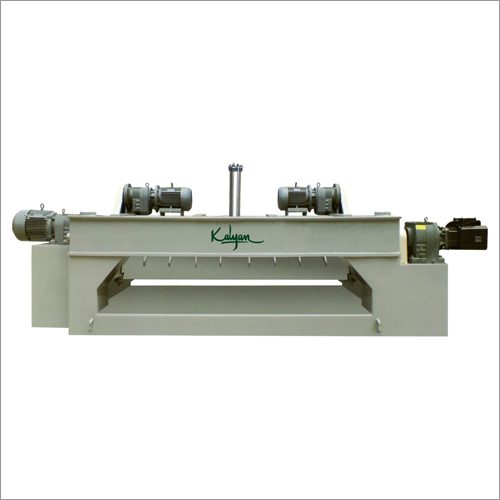

HEAVY DUTY HIGH SPEED SPINDLELESS

HEAVY DUTY HIGH SPEED SPINDLELESS
HEAVY DUTY HIGH SPEED SPINDLELESS
Send Inquiry
Product Code : 115
Product Description

Specifications:

Max. Cutting Length

2700 mm

Max. Cutting Diameter

500mm

RemainingDiameter (Left over Roller)

30~35 mm

Cutting Thickness

0.28 - 3 mm

(0.2 - 3 mm - optional)

Outfeed Speed

36m/min

(42 m/min - Optional)

Feeding Motor

15 HP

Drive Motor for Pressure Bar Rollers (Rotary Nose Bar)

10hp x 2 = 20 HP

Roller Drive Motors (Double Rollers)

15hp x 2 = 30 HP

Weight

8500 Kgs.

All specifications, dimensions & design characteristic are

subject to change without prior notice.
