FOUR HEAD TOP AND BOTTOM / DOUBLE DECK WIDE BELT SANDING MACHINE

FOUR  HEAD TOP AND BOTTOM / DOUBLE DECK WIDE BELT SANDING MACHINE
FOUR HEAD TOP AND BOTTOM / DOUBLE DECK WIDE BELT SANDING MACHINE
Product Code : TOP & BOTTOM SANDER
Product Description

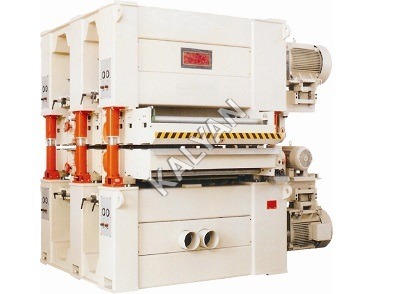

FOUR  HEAD TOP AND BOTTOM / DOUBLE DECK WIDE
BELT SANDING MACHINE MODEL KID-1300-R-RP
Specifications:
MODEL KID-1300-R-RP
Working Width 80-1300 mm
Working Thickness 8~80 mm
Working Length ≥ 860 mm
Working Precision 0.1
Motor of Abrasive Belt 75 kw x 2 + 75 kw x 2
OR
90 kw x 2 + 75 kw x 2
Speed of Abrasive Belt 25 m/s
Abrasive Belt Size (L x D) 2560 x 1360 mm
Movement system power of upper body 2.2 kw
Auto feeding system (stepless speed variation) 6~35 m/min
Motor power of auto feeding system 15 kw
Total Power 277.2 kw
Working Pressure 0.6 ~ 0.9 Mpa
Compressed Air Consumption 2 m3/min
All specifications, dimensions & design characteristic are subject to change without prior notice.
