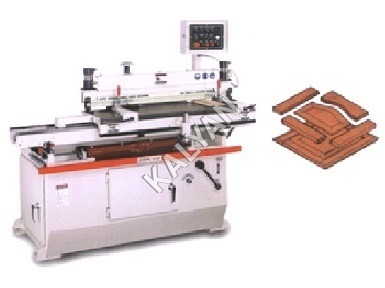

AUTO RAISED PANEL DOOR MACHINE

AUTO RAISED PANEL DOOR MACHINE
AUTO RAISED PANEL DOOR MACHINE
Send Inquiry
Product Code : AUTO RAISED PANE
Product Description

Technical Specifications:

MODEL

LH-1000-AT

LH-1400-AT

LH-2200-AT

LH-2600-AT

Main Spindle Driving Power

10 HP

10 HP

15 HP

15 HP

Pump Motor

1 HP

1 HP

1 HP

1 HP

Main Spindle Revolving Speed

6000 RPM

6000 RPM

6000 RPM

6000 RPM

Main Spindle Dia.

f30 mm

f30 mm

f40 mm

f40 mm

Driven Wheel Dia.

f100m/m

f100m/m

f100m/m

f100m/m

Max. Working Length

1000 m/m

1400 m/m

2200 m/m

2600 m/m

Machine Size

1950x950x1450

2350x950x1450

3500x950x1450

4600x1000x1600

Packing Size

2030x1000x1600

2450x1000x1780

3930x1250x2100

4700x1250x2100

N.W./G.W.

950/1150 kgs.

1020/1220 kgs.

1520/1720 kgs.

1720/1920 kgs.

Allspecifications, dimensions & design characteristic are subject to changewithout prior notice.
